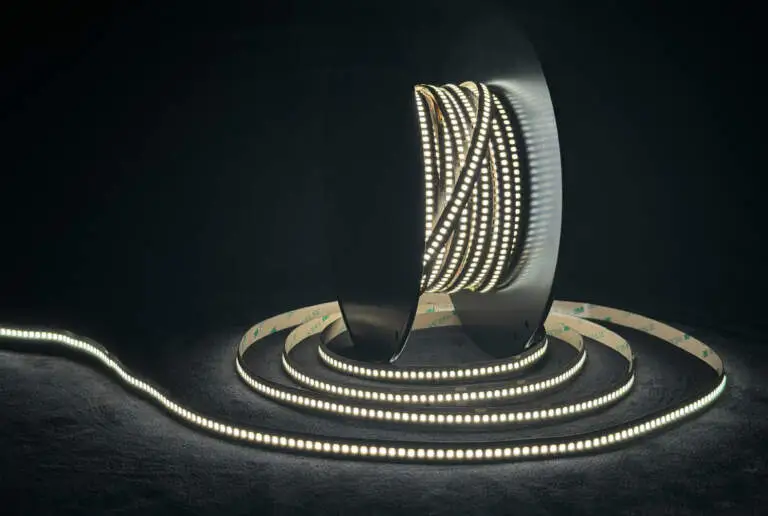

K-SERIES
Description
Architectural Grade LED tape utilizing 95+ CRI and R9 diodes. With its best in class color quality specifications, Ace Illuminations K-series is a specifiers best friend on any high profile project.
Specifications
Downloads
Specifications
- Voltage: 24V
- CCT: 27K, 30K, 35K, 40K, 50K
- Lumens: 200, 400, 600, 800, 1000
- Beam spread 120°
- CRI: 95+
- R9: 95+
- Max Run: 40′ (200lm), 30′ (400lm), 19′ (600lm), 13′ (800lm), 11′(1000lm)
- Cut marks: 50mm (1.32″)
- IP Rating: IP20(indoor), IP65 (outdoor)
- Operating Temperature: -40°F (-40°C) to 131°F (55°C)
- Lumen Maintenance: 50,000
- UL Listed
- Dimension:
- Indoor: 10mm (0.39”) x 2mm (0.08”)
- Outdoor: 12.50mm (0.49”) x 4mm (0.16”)
- Binning Tolerance: Single Binning
