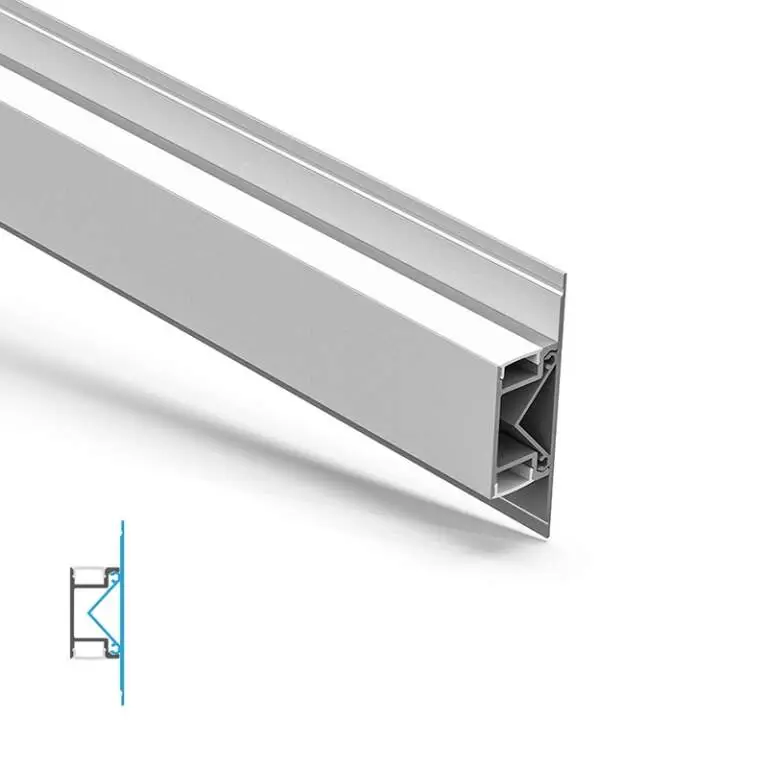

SURFACE INDIRECT/DIRECT
PRO-106
Features
Applications
Specifications
Downloads
Features
- Up and down wall washing profile
- Beam angle: 80°
- Front side wall plate creates indirect accent lighting look with a surface mount profile
- Required double runs of tape
- Compatible with K series IP20 & IP67, J series IP20 & IP67 , C series, G series IP20 & IP67
- Available with white and clear lens
- Dimension: 23.70mm (0.93″) WIDTH x 83.00mm (3.27″) HEIGHT
Applications
● For use in hallway applications or anywhere that requires wall mounted up/down illumination
Specifications
● Dimensions W23.7mm (0.93″)*H83mm (3.27″), internal dimension 12mm (0.47″)
● Extruded 6063 aluminum
● White lens
● Anodized silver
