NEON
N-Horizontal
Description

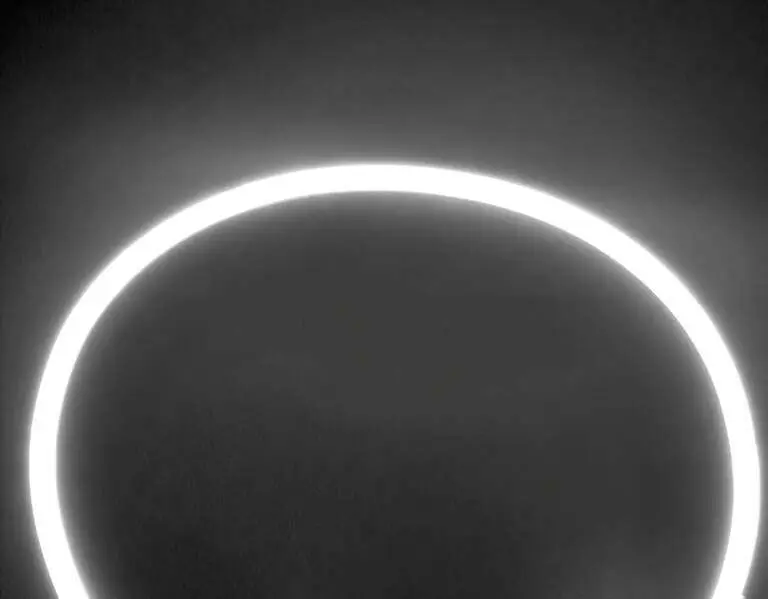

Ace Illuminations horizontal bending LED neon provides seamless diode free illumination for both indoor and outdoor applications. This low profile product is ideal for curved applications where elegant accent illumination is required.
Specifications
Downloads
Specifications
- Voltage: 24v DC
- CCT:
- Static White: 27K, 30K, 35K, 40K, 50K
- Static Color: Red, Green, Blue
- RGBW: Red, Green, Blue, 30K
- Color Tuning: 2700K-5700K
- Lumens:
- Static White: 200, 300
- Static Color: N/A
- RGBW: 130
- Color Tuning: 2700K-5700K
- Beam spread: 120°
- CRI:
- Static White: 90+
- Static Color: N/A
- RGBW: (W) 90+
- Color Tuning: 90+
- Max Run:
- Static White: 30′ (200lm), 20′ (300lm)
- Static Color: 30′ (SC)
- RGBW: 16′ (130lm)
- Color Tuning: 16′ (130lm)
- IP Rating: IP67 (outdoor)
- Operating Temperature: -13°F (-25°C) to 113°F (45°C)
- Lumen Maintenance 50,000
- ETL Listed
- Dimension:
- Static White: 16mm (0.63”) x 15mm (0.59”)
- Static Color: 16mm (0.63”) x 15mm (0.59”)
- RGBW: 20mm (0.79”) x 20mm (0.79”)
- Color Tuning: 20mm (0.79”) x 20mm (0.79”)
- Binning Tolerance:
- Static White: Single Binning
- Static Color: N/A
- RGBW: (W) Single Binning
- Color Tuning: Single Binning
