GRAZER

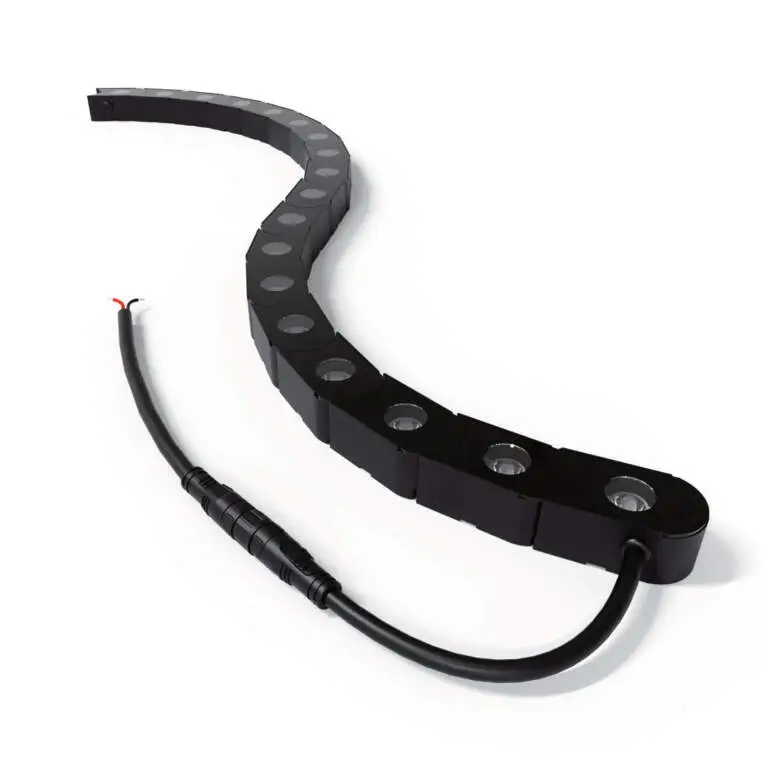

Basilisk Graze
Basilisk Graze is an outdoor rated flexible graze/wall wash fixture with horizontal bending capabilities. With 8 beam angle options and 30° rotation per module, Basilisk Graze provides versatility to provide high end performance to any outdoor project.
Specifications
Downloads
Specifications
- Voltage: 24v DC
- CCT:
- Static White: 27K, 30K, 35K, 40K, 50K
- Lumens:
- Static White (3000K): 886lm (14”), 1771lm (27”), 2657lm (40”), 3543lm (53”)
- Optic: 15°, 20°, 30°, 40°, 10°X15°, 15°X25°, 15°X40°, 25°X45°
- CRI:
- Static White: 90+
- Max Run:
- Static White Max Run: 8’
- IP Rating: IP67 (wet)
- Operating Temperature: -13°F (-25°C) to 122°F (50°C)
- UL Listed
- Dimension:
- Static White: 10mm (0.33″) width x 6.55mm (0.39”)
- Lengths: 14”, 27”, 40”, 53”
- Static White: 10mm (0.33″) width x 6.55mm (0.39”)
- Binning Tolerance: Single Binning
