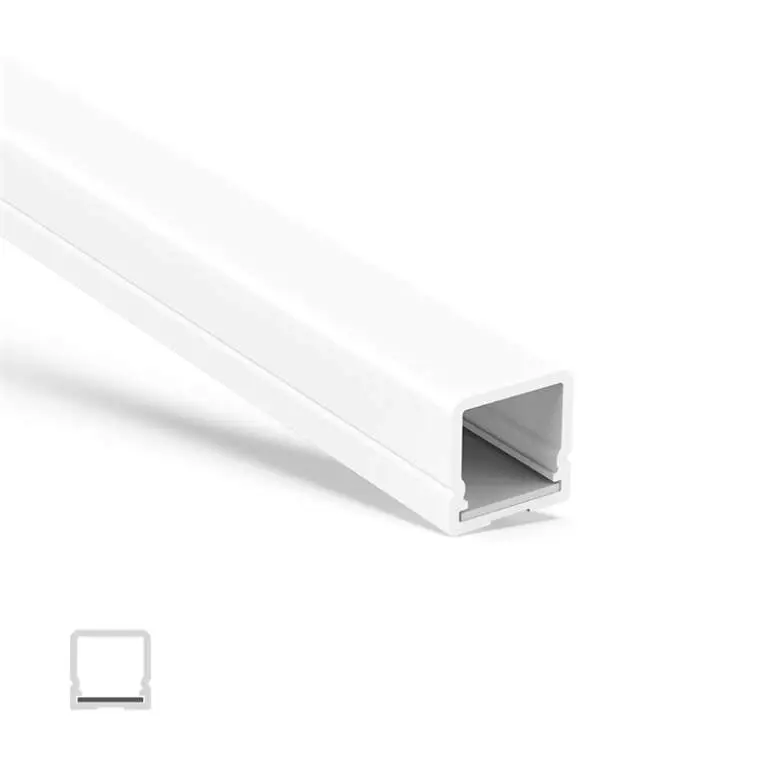

PRO-113

• Surface mount profile that provides 3 sided illumination
• Beam angle: 160°
• Compatible with K series IP20 & IP67, J series IP20 & IP67 , C series, G series IP20 & IP67
• Available with white lens
• Dimension: 17.10mm (0.67″)WIDTH x 16.95mm (0.66″) HEIGHT

● A variety of outdoor surface mount applications that require general illumination

• Dimensions W17.1mm (0.67″)*H17mm (0.67″), Internal Dimension 12.1mm (0.48″)
• Extruded 6063 aluminum
• White lens
• Anodized silver

Spec Sheet

Install Instructions

CAD Drawing
