Surface

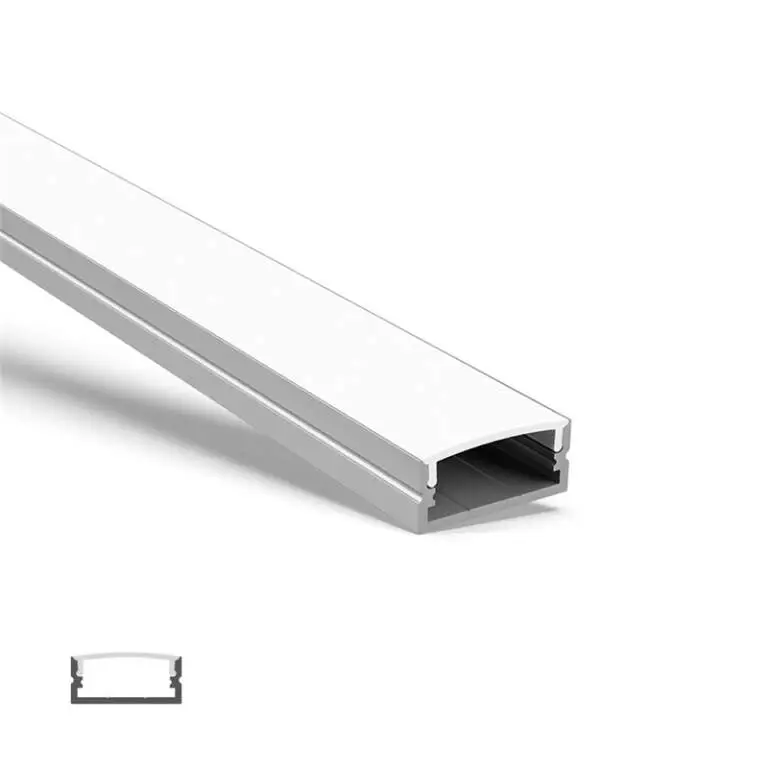

PRO-103
Features
Applications
Specifications
Downloads
Features
- Discreet surface mount profile
- Designed to create low profile direct fixtures for accent lighting
- Diode free illumination with all Ace Illuminations products
- Beam angle: 110°
- Compatible with K series IP20 & IP67, J series IP20 & IP67 , C series, G series IP20 & IP67
- Available with white, clear, and black lens
- Dimension: 23.50mm (0.93″) WIDTH x 11.00mm (0.43″) HEIGHT
Applications
● Under cabinet lighting and various other surface mount applications
● Designed to be surface mounted using metal clips
Specifications
● Dimensions W23.50mm (0.93″)*H11mm (0.43″), internal dimension 20.70mm (0.81″)
● Extruded 6063 aluminum
● White lens
● Anodized silver
