Mini NEON
N-Mini
Description

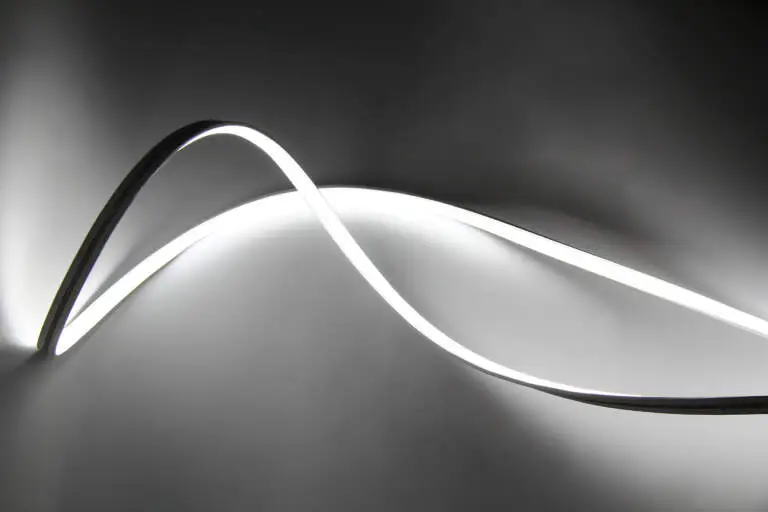

Ace Illuminations N-Mini Series is the smallest of the Ace Neon family. With its small form factor and impressive 400-600 lumen output range, this product is perfect for any indoor or outdoor application that requires direct view lighting.
Specifications
Downloads
Specifications
- Voltage: 24v DC
- CCT:
- Static White: 27K, 30K, 35K, 40K, 50K
- RGBW: Red, Green, Blue, 30K
- Lumens:
- Static White: 400, 600
- RGBW: 30
- Beam spread:
- Static White: 150°,
- RGBW: 140°
- CRI:
- Static White: 90+
- RGBW: (W) 90+
- Max Run:
- Static White Max Run: 28’ (400lm), 18’ (600lm)
- RGBW Max Run: 16’ (30lm)
- Cut marks:
- Static White: 20mm (0.78″)
- RGBW: 41.67mm (1.64″)
- IP Rating: IP67 (outdoor)
- Operating Temperature: -4°F (-20°C) to 104°F (40°C)
- Lumen Maintenance 50,000
- UL Listed
- Dimension:
- Static White: 10mm (0.39″) width x 6.50mm (0.25″)
- RGBW: 10mm (0.39″) width x 9.5mm (0.37″)
- Binning Tolerance:
- 3K White Light: Single Binning
