NEON GRAZE
N-Graze
Description

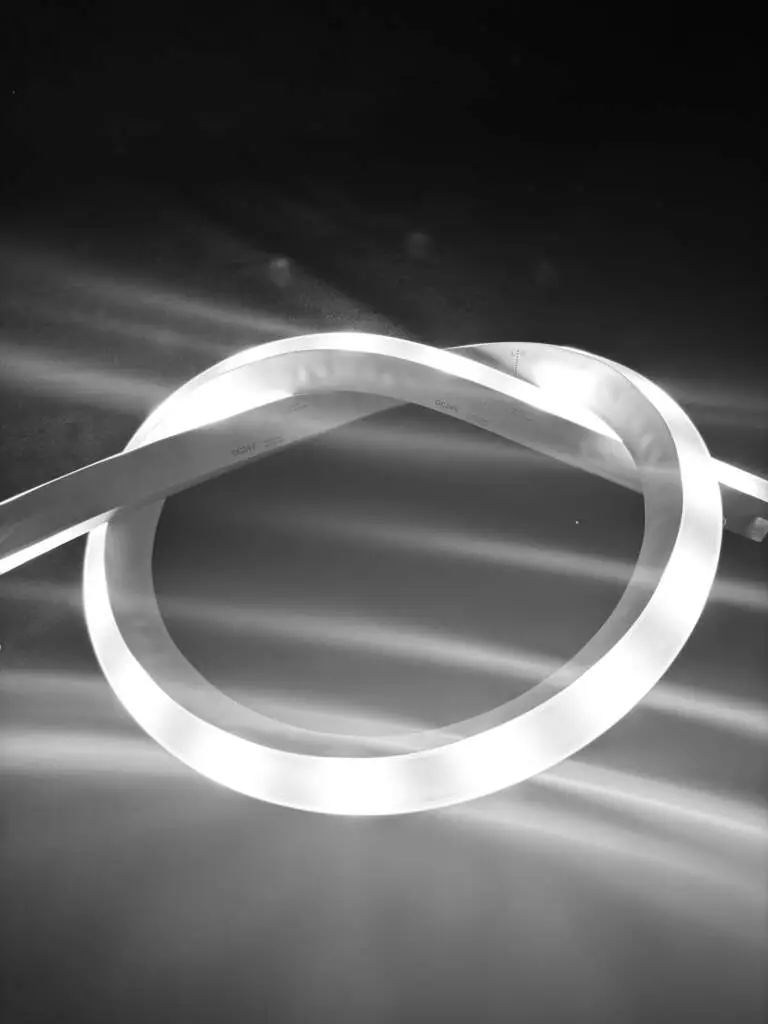

Ace N Graze series combines the LED Neon look with wall washing/grazing capabilities. This product is outdoor rated and can bend vertically and horizontally allowing for quality grazing in straight or curved applications.
Specifications
Downloads
Specifications
- Voltage: 24v DC
- CCT:
- Static White: 27K, 30K, 35K, 40K, 50K
Lumens:
- Static White: 300
- Beam spread: 15°, 20°, 25°, 40°, 60°, 20°x40°
- CRI:
- Static White: 90+
- Max Run:
- Static White: 16′ (300lm)
- IP Rating: IP68 (outdoor)
- Operating Temperature: -40°F (-40°C) to 131°F (55°C)
- Lumen Maintenance 50,000
- ETL Listed
- Dimension:
- Static White: 18mm (0.70”) x 18mm (0.70”)
Binning Tolerance:
- Static White: Single Binning
