Controllers

Our Ace controllers help establish scenes and zones for our LED DMX product.

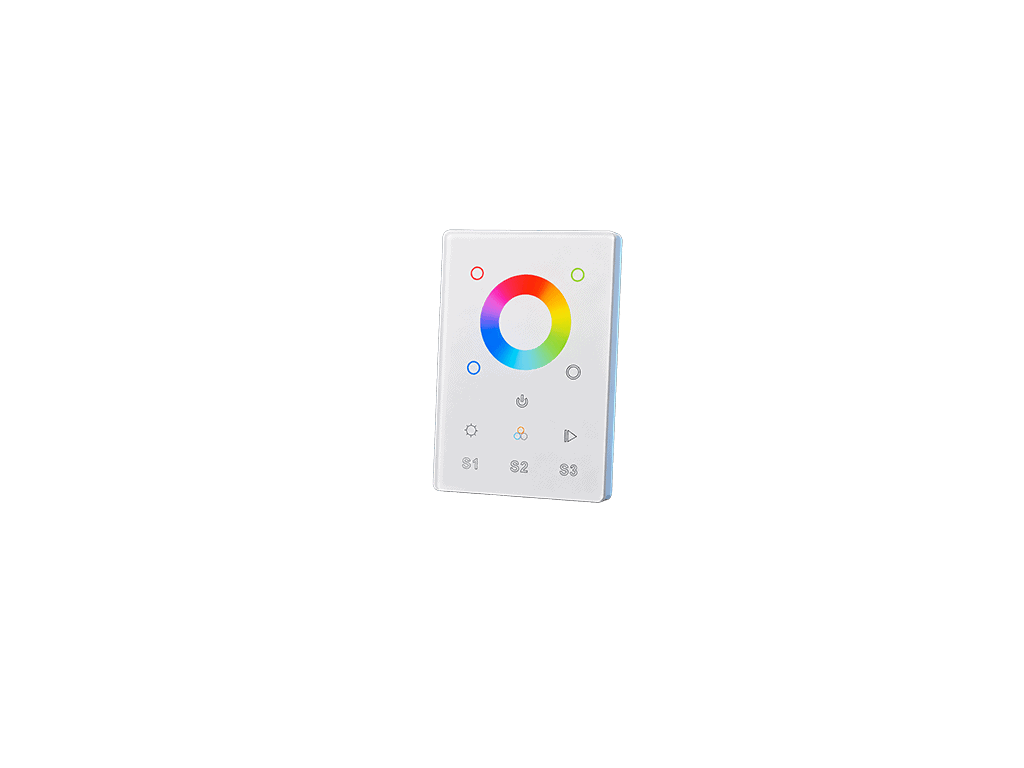

ACE-DMX-CTRL-3S

The DMX CTRL 3S is designed for small projects where simplicity for the end user is top priority made to “set it and forget it” with its quick access to 3 primary scenes.

  • Scenes: 3 dedicated scene buttons
  • Capacity: 1 DMX universes (512 channels)
  • Control: Wall mounted, touch sensitive glass interface includes color wheel
  • Voltage: 12V-24V DC (Requires external power supply)
  • Mounting: Fits standard US single gang wall boxes
  • Programming: Customizable scenes via USB (using ESA2 software)

ACE-DMX-CTRL-3Z

The DMX CTRL 3Z is the big brother to the 3S version however the internal logic is designed for projects that need to be split into different areas hence the scene button replaced by the zone button.

  • Zones: 3 zones (Control 3 independent areas separately)
  • Capacity: 1 DMX universes (512 channels)
  • Control: Wall mounted, touch sensitive glass with zone buttons
  • Voltage: 12V-24V DC
  • Mounting: Fits standard US single gang wall boxes
  • Programming: Customizable scenes via USB (using ESA2 software)

ACE-DMX-CTRL-1

The DMX CTRL 1 is Ace’s entry level power house in  Ace Illuminations’ control lineup, specifically designed for high-end residential, small boutique, or specific architectural accent feature.

  • Zones: 1 zone
  • Capacity: 2 DMX universes (1024 channels)
  • Control: Wall mounted, touch sensitive interface
  • Voltage: 5V-15V DC
  • Mounting: Fits standard US single gang wall boxes
  • Programming: Customizable scenes and shows via USB

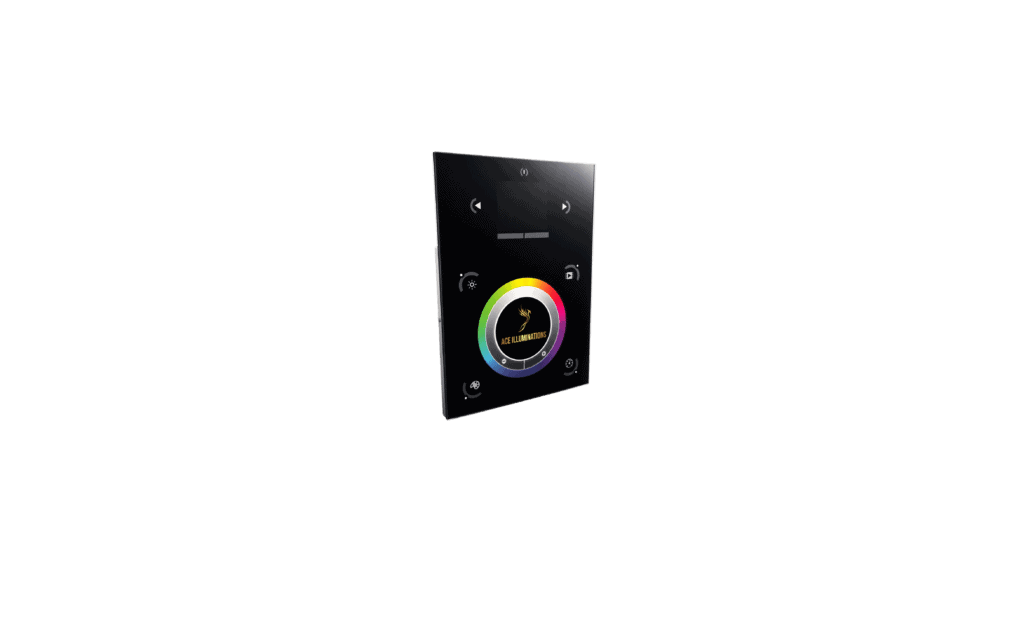

ACE-DMX-CTRL-10

The DMX CTRL 10 is Ace’s heavyweight of Ace Illuminations wall controller lineup designed for high end estates , large restaurants, or commercial buidlings where partition lighting into many different areas is needed.

  • Zones: 10 zones (independent controls of 10 different areas)
  • Capacity: 2 DMX universes (1024 channels)
  • Control: Glass touch sensitive interface with Zone/scene toggle
  • Voltage: 5V-15V DC (external power supply required)
  • Mounting: Fits standard US single gang wall boxes
  • Programming: Advanced programming via USB (ESA2 or ESA Pro software)
